Mini- Rabs

minirabs

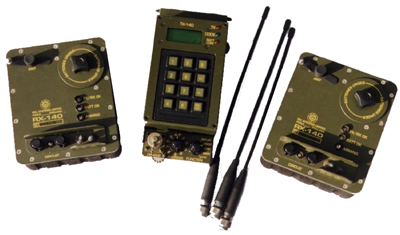

The Mini RABS (Remote Answer Back System) is a secure, safe radio controlled initiation system, developed for deployment in areas where a small, lightweight receiver is necessary for the remote initiation of pyrotechnics and other electrically initiated devices. The system is user programmable in minutes allowing automatic firing sequences to be initiated. The system consists of one Control Unit and up to 81 individually identifiable Remote Firing Units (RFU's). There are nine addresses with up to nine RFU's on each address. A flotation chamber is available for housing the Mini RABS receiver (Marine RABS) - this enables underwater demolitions to be carried out.

Other Features:

Mini-RABS Control Unit

Mini-RABS Remote Firing Unit

  • Compact Size: 220mm x 95mm x 70mm

  • Unit Weight 1.2 Kg

  • Case Material Aluminum Alloy

  • Internal Ni-Cd Batteries

  • LCD Display

  • 12 Way Keypad (Numbers 1-9, ALL, OK and Boxtest)

  • LED Indicators

  • Rotary Function & Address Switch

  • Battery Charging Socket

  • Auto-Fire Button

  • Temp –20 to +50oC  (LCD & Ni-Cd Battery Limitation



  • Compact Size: 155mm x 130mm x 55mm

  • Unit Weight 0.68 Kg

  • Case Material Aluminum Alloy

  • Lithium (DL223) Battery Source

  • LED Indicators

  • Lift/Lock On/Off Switch

  • Safety Arming Timer

  • Push Test Switch

  • Continuity Indicator

  • Antenna Socket (TNC)

  • Temperature Range -35 to +55oC

  • Output Energy 2.5 Joules

  • Typical unattended life 100 hours



The Control Unit is designed for simple user operation, in all conditions, and has a number of built-in safety features to prevent premature firing.



More Information



TX140 – Mini-RABS Control Unit  NSN: 6920-99-938-2436
RX140 – Mini-RABS Remote Firing Unit 6920-99-219-5078
CX140 – Mini-RABS Control Unit Charger 6130-99-573-5918

Marine RABS

marinerabs

A flotation chamber is available for housing the Mini R.A.B.S. receiver - this enables underwater demolitions to be carried out.
